summary:

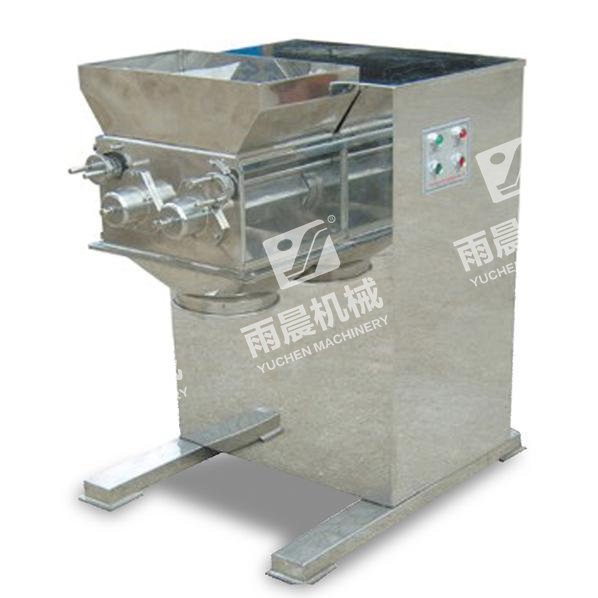

This machine is developed and improved based on the traditional swing pellet machine. It can be widely used in industries such as pharmaceuticals, chemicals, and food. It can turn wet powdered materials into particles and crush block shaped dry materials for rapid granulation. This machine complies with "GMP" and is currently the ideal granulation equipment.
Principle and Characteristics:
By using mechanical transmission to make two rollers swing back and forth simultaneously, the material is extruded from the sieve into granules or crushed into granules or quickly granulated. It has the advantages of simple operation, high yield, simple and compact structure, and small footprint.
Main technical parameters
model
Rotating roller diameter mm
Rotating roller speed rpm
Swing angle
Motor power kw
Production capacity kg/h
Dimensions (length Lx width Wx height H) mm
Weight kg
SYK-100
?100x2
55
360±10
3
100-400
900x650x1100
380
SYK-160
?160x2
55
360±10
5.5
300-600
1200x800x1350
650
SYK-250
?250x2
55
360±10
11
400-1000
1300x1140x1400
850
